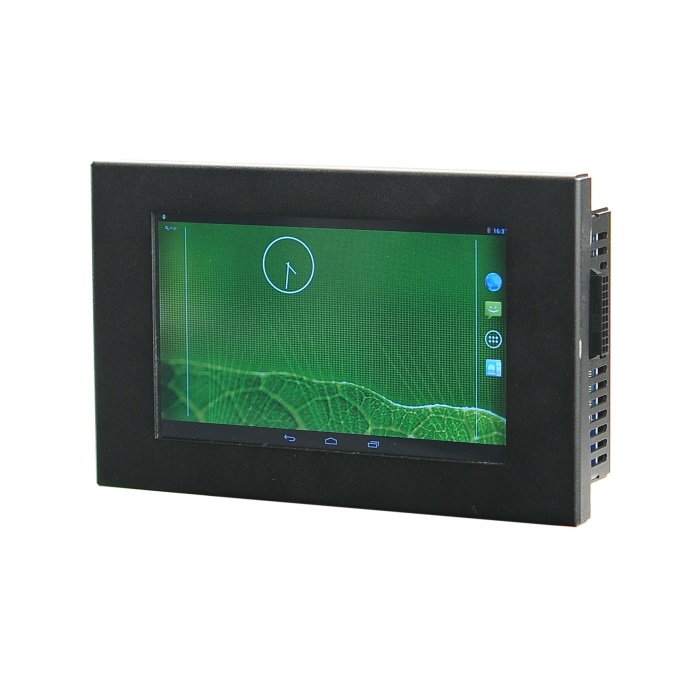

JECS-2507P / 외장형 7인치 1024*600 정전식터치 안드로이드 패널 PC / Android 6.0 / Ubuntu 12.04 / 12V 전원 어답터 포함

JECS-2507P Specifications

Display

Screen Size

7-inch

Resolution / Color

1024 x 600 / 16.2M

Contrast

700

White Luminance (cd/m²)

Min. 270

Typ. 350

View Angle (^o)

(H) 75/75 ; (V) 70/70

Touch Screen

Type

Projected Capative Type

Points

9

Hardness

3H

CPU

Processor

NXP i.MX6 ARM Cortex-A9 Quad @ 1GHz

Memory

DDR3 / Flash

2GB / 4GB eMMC

OS

OS

Android 6.0 / Ubuntu Linux 12.04

Power

DC Power

12V Power

Audio

Audio Interfaces

1x MIC + 1x Headphone

Network

LAN

1x 10M / 100M / 1G bps Ethernet

I/O

USB ports

1x USB2.0 OTG

2x USB2.0 Host

SD Card

1x microSD card slot

COM Port

1x RS232 + 1x RS485

I 2C / GPIO

1x I2C master + 8-bit GPIO

Timer

RTC

Yes (with rechargeable battery)

Watchdog Timer

Yes

Dimension

Dimension

330 x 296 x 60 mm

Temperature

Operating Storage

0^oC to 60^oC

Certification

EMI / EMC

CE, FCC

Option

Option Functions (-V)

-V Option

Over Voltage / Current Protection,

16-bit GPIO, CAN BUS

(Extension Board)

Optional Modules

WiFi/Bluetooth Module,

3G/LTE (Extension Board),

4x RS232/RS485 Module
