인텔 모바일 CPU i3-2310M 성능비교



젝스컴퍼니에서 주력 판매 중인 AIMB-272G2 메인보드에 장착된 i3-2310M CPU 성능을 궁금해 하시는 분들이 있어 올립니다.


Sandy Bridge 계열의 2.1GHz의 이 CPU는 가격 대 성능비가 아주 뛰어나 성능이 좋은 산업용 컴퓨터를 찾으시는 분들께 적극 추천합니다.


젝스컴퍼니에서는 윈도우 7,8 뿐만 아니라 최신의 Ubuntu Linux 14.04 버젼도 설치 가능합니다.






Intel Core i3-2310M specifications




General information
Type CPU / Microprocessor
Market segment Mobile
Family Intel Core i3 Mobile
Model number  ?  i3-2310M
CPU part number

  • FF8062700999405 is an OEM/tray microprocessor


Frequency  ?  2100 MHz
Bus speed  ?  5 GT/s DMI
Clock multiplier  ?  21
Package 988-pin micro-FCPGA10 (rPGA988B)
Socket Socket G2 / rPGA988B
Size 1.48" x 1.48" / 3.75cm x 3.75cm
Weight 0.2oz / 5.7g
Introduction date Feb 20, 2011
S-spec numbers
ES/QS processors Production processors
Part number Q1SP SR04R
FF8062700999405 + +
Architecture / Microarchitecture
Microarchitecture Sandy Bridge
Processor core  ?  Sandy Bridge
Core stepping  ?  J1 (Q1SP, SR04R)
CPUID 206A7 (SR04R)
Manufacturing process 0.032 micron High-K metal gate process
Data width 64 bit
The number of cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size  ?  2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size  ?  2 x 256 KB 8-way set associative caches
Level 3 cache size 3 MB 12-way set associative shared cache
Cache latency 4 (L1 cache)
12 (L2 cache)
26 (L3 cache)
Physical memory 8 GB
Multiprocessing Not supported
Features

  • MMX instructions

  • SSE / Streaming SIMD Extensions

  • SSE2 / Streaming SIMD Extensions 2

  • SSE3 / Streaming SIMD Extensions 3

  • SSSE3 / Supplemental Streaming SIMD Extensions 3

  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?

  • AVX / Advanced Vector Extensions

  • EM64T / Extended Memory 64 technology / Intel 64  ?

  • NX / XD / Execute disable bit  ?

  • HT / Hyper-Threading technology  ?

  • VT-x / Virtualization technology  ?


Low power features Enhanced SpeedStep technology  ?
Integrated peripherals / components
Integrated graphics GPU Type: HD 3000
Base frequency (MHz): 650
Maximum frequency (MHz): 1100
The number of supported displays: 2
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
Other peripherals

  • Direct Media Interface 2.0

  • PCI Express 2.0 interface


Electrical / Thermal parameters
Maximum operating temperature ?  85°C
Thermal Design Power  ?  35 Watt
Notes on Intel Core i3-2310M

  • The processor has the following security, data protection and/or software features: Intel Identity Protection technology and Anti-Theft technology.

  • The CPU is compatible with Shader Model 4.1, along with DirectX 10.1 and OpenGL 3.1 APIs. OpenCL API is not supported.

  • The graphics unit has the following software features enabled: Intel Quick Sync Video, Wireless Display, Insider, InTru 3D technology and Clear Video HD technology.











Detailed side-by-side comparison


<form action="http://www.cpu-world.com/cgi-bin/ajax/parts.fcgi" autocomplete="off" style="margin: 0px; padding: 0px;">For detailed comparision of the Intel i3-2310M and any other other chip from our CPU database type in a chip name and/or its partial specs:

<input type="text" id="PART2" name="PART2" value="" class="input itext" style="margin: 0px; padding-right: 1px; padding-left: 1px; font-family: verdana, helvetica, arial, sans-serif; font-size: 13px; color: rgb(64, 64, 64); font-weight: bold; border-width: 1px; border-style: solid; border-color: rgb(160, 160, 160) rgb(232, 232, 232) rgb(232, 232, 232) rgb(160, 160, 160); width: 400px;" /><input type="submit" name="ACTION" value="Compare" class="ibuttonr" style="margin: 0px 0px 0px 5px; padding: 2px; font-family: verdana, helvetica, arial, sans-serif; font-size: 11px; color: rgb(64, 64, 64); font-weight: bold; border-width: 1px; border-style: solid; border-color: rgb(228, 224, 216) rgb(164, 160, 152) rgb(164, 160, 152) rgb(228, 224, 216); overflow: visible; cursor: pointer; background-color: rgb(212, 208, 200);" />

You can specify any of the following: manufacturer name, family name, model number, part number, core name, socket name, operating frequency, bus speed, and the last level cache. Here are examples of searches: i3-2310M, FF8062700999405, Intel Core i3 Mobile 2.1GHz, Sandy Bridge Socket G2


</form>

FAQ


Q: Is it possible to upgrade my Intel i3-2310M CPU?

A: Probably yes. Processor compatibility is determined by your motherboard. Please see CPU-Upgrade.com website for CPU support list for your board.

Core i3-2310M Overclocking


Sorry, overclocking information for the processor is not available at this time.

Related news stories



Intel Core i3-2310M and Core i5-2410M are officially out



Mar 03, 2011: With the introduction of dual-core Sandy-Bridge microprocessors last week, there was some uncertainty about launch status of low voltage and ultra low voltage mobile microprocessors, as well as budget-to-mid-class Core i3-2310M and Core i5-2410M mobile CPUs. Unlike LV and ULV processors, cheap mainstream Core i3s and i5s already appeared on the market. With the abundance of new and announced notebooks with the i3-2310M/i5-2410M SKUs, it was evident that the parts were likely launched, and recent addition of specifications of these CPUs to Intel's ARK database confirmed that.

<form action="http://www.cpu-world.com/news_2011/2011030301_Intel_Core_i3-2310M_and_Core_i5-2410M_are_officially_out.html" style="margin: 0px; padding: 0px;"><input type="submit" name="PROCESS" value="Read more..." class="ibutton" style="margin: 0px; padding: 2px; font-family: verdana, helvetica, arial, sans-serif; font-size: 11px; color: rgb(64, 64, 64); font-weight: bold; border-width: 1px; border-style: solid; border-color: rgb(228, 224, 216) rgb(164, 160, 152) rgb(164, 160, 152) rgb(228, 224, 216); overflow: visible; cursor: pointer; background-color: rgb(212, 208, 200);" /></form>














<form action="http://www.cpu-world.com/benchmarks/" method="POST" style="margin: 0px; padding: 0px;">Compare Intel i3-2310M (PGA) benchmark results with all tested CPUs from one of the following families:

A10-Series for Notebooks
A4-Series for Notebooks
A6-Series for Notebooks
A8-Series for Notebooks
Athlon 64 X2 for Notebooks
Athlon II Dual-Core Mobile
Core 2 Duo Mobile
Core i3 Mobile
Core i5 Mobile
Core i7 Mobile
Mobile Celeron Dual-Core
Pentium Dual-Core Mobile
Phenom II Dual-Core Mobile
Phenom II Quad-Core Mobile
Phenom II Triple-Core Mobile
Turion 64 X2 Mobile technology
Turion II Dual-Core Mobile
<input type="submit" name="GO" value="Show" class="ibuttonr" style="margin: 0px 0px 0px 5px; padding: 2px; font-family: verdana, helvetica, arial, sans-serif; font-size: 11px; color: rgb(64, 64, 64); font-weight: bold; border-width: 1px; border-style: solid; border-color: rgb(228, 224, 216) rgb(164, 160, 152) rgb(164, 160, 152) rgb(228, 224, 216); overflow: visible; cursor: pointer; background-color: rgb(212, 208, 200);" />

</form><form action="http://www.cpu-world.com/benchmarks/" style="margin: 0px; padding: 0px;">To compare this Core i3 Mobile CPU with any tested processor please proceed to<input type="submit" name="PROCESS" value="benchmark database" class="ibutton" style="margin: 0px; padding: 2px; font-family: verdana, helvetica, arial, sans-serif; font-size: 11px; color: rgb(64, 64, 64); font-weight: bold; border-width: 1px; border-style: solid; border-color: rgb(228, 224, 216) rgb(164, 160, 152) rgb(164, 160, 152) rgb(228, 224, 216); overflow: visible; cursor: pointer; background-color: rgb(212, 208, 200);" />

</form>For additional benchmarks, comparing multi-threaded performance of this microprocessor with other Core i3 Mobile CPUs and the fastest AMD and Intel x86 chips, please visit Intel Core i3-2310M (PGA) benchmarks page.

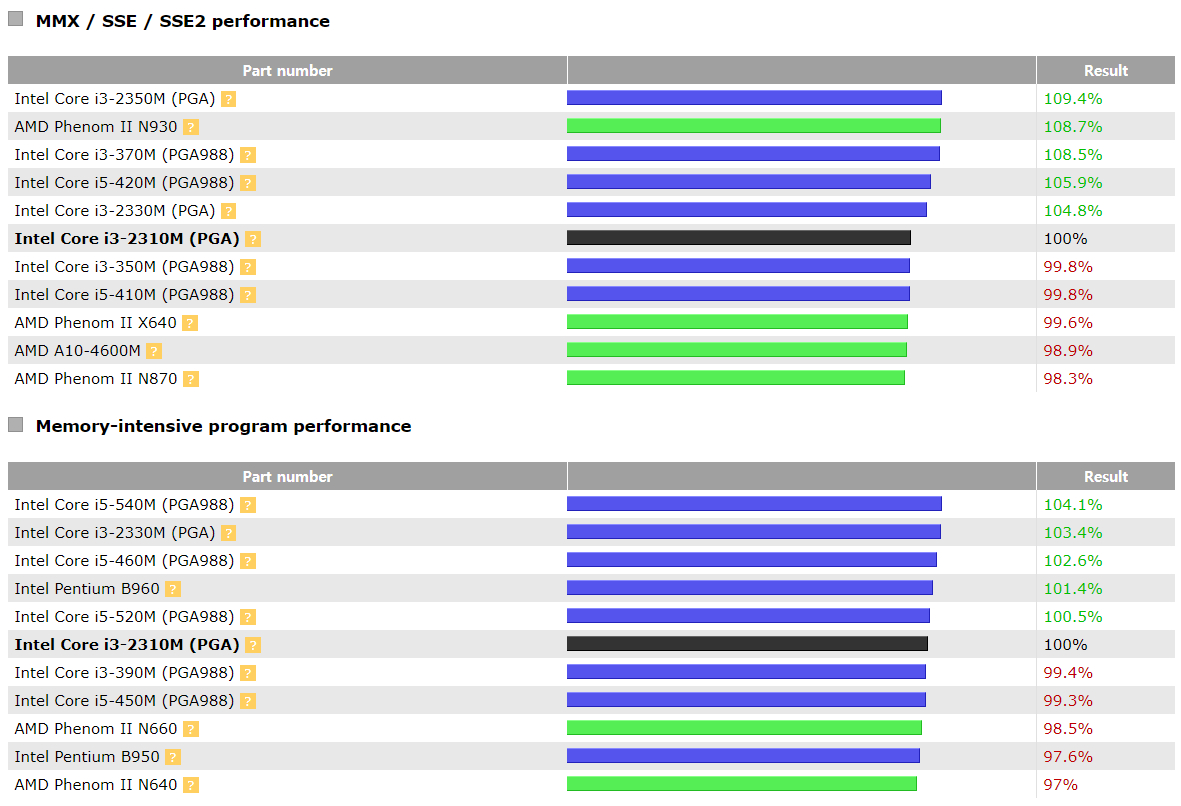

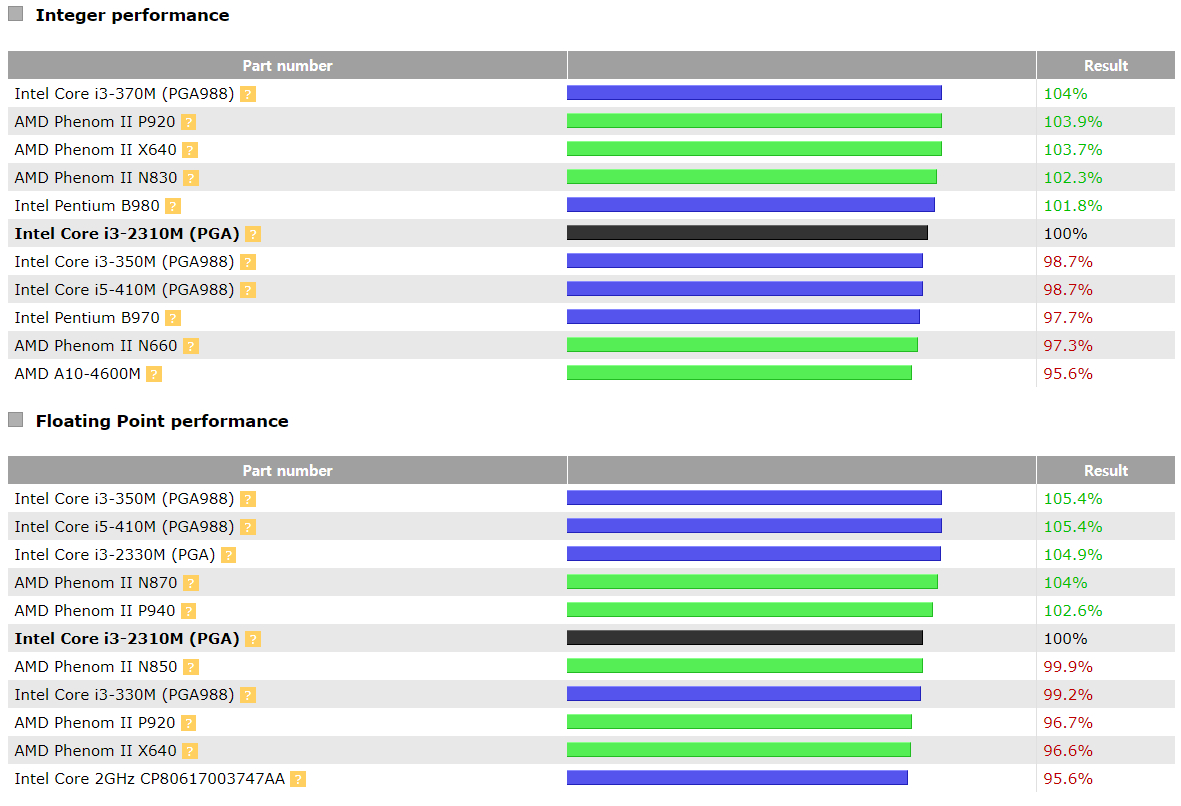

Intel i3-2310M Benchmarks


The graphs below show up to 10 microprocessors with approximately the same level of integer (CPU), floating-point (FPU), SIMD and memory performance. All processors were not overclocked, and were tested at a nominal frequency, with a stock heatsink and default BIOS settings. Click on the '?' mark next to each model name to see specifications of that model, and details of the test platform. To find out how the i3-2310M (PGA) compares to other CPUs in specific benchmarks or in aggregate milti-threading performance please see benchmark tools section on the right.

Benchmarked processor



CPU ID: 206A7
CPU vendor string: GenuineIntel
CPU name string: Intel(R) Core(TM) i3-2310M CPU @ 2.10GHz













CPU ID information for the Core i3-2310M




Our CPUID database contains 4 records for this microprocessor. See all submitted records.

Use our CPU identification tool to check features of your CPU.

NOTE: The CPU ID information below was taken from one CPU and may include features that are not present in all different steppings of the Intel Core i3 Mobile i3-2310M CPU.

Manufacturer: Intel Measured frequency: 2095 MHz
CPU Family: Core i3 Mobile Comment:
Processor Number: i3-2310M
Part number (supplied): Submitted by:
Part number (guessed):
AV8062700999605 /
FF8062700999405
Submitted on:
S-Spec Number: CWID version: 0.5




General information
Vendor: GenuineIntel
Processor name (BIOS): Intel(R) Core(TM) i3-2310M CPU @ 2.10GHz
Cores: 2
Logical processors: 4
Processor type: Original OEM Processor
CPUID signature: 206A7
Family: 6 (06h)
Model: 42 (02Ah)
Stepping: 7 (07h)
TLB/Cache details: 64-byte Prefetching
Data TLB0: 2-MB or 4-MB pages, 4-way set associative, 32 entries
Data TLB: 4-KB Pages, 4-way set associative, 64 entries
Instruction TLB: 4-KB pages, 4-way set associative, 64 entries
L2 TLB: 1-MB, 4-way set associative, 64-byte line size
Shared 2nd-level TLB: 4 KB pages, 4-way set associative, 512 entries
Cache: L1 data L1 instruction L2 L3
Size: 2 x 32 KB 2 x 32 KB 2 x 256 KB 3 MB
Associativity: 8-way set
associative
8-way set
associative
8-way set
associative
12-way set
associative
Line size: 64 bytes 64 bytes 64 bytes 64 bytes
Comments: Direct-mapped Direct-mapped Non-inclusive
Direct-mapped
Inclusive
Shared between all cores
Instruction set extensions Additional instructions
MMX CLFLUSH
SSE CMOV
SSE2 CMPXCHG16B
SSE3 CMPXCHG8B
SSSE3 FXSAVE/FXRSTORE
SSE4.1 MONITOR/MWAIT
SSE4.2 PCLMULDQ
AVX POPCNT
RDTSCP
SYSENTER/SYSEXIT
XSAVE/XRESTORE states
XSETBV/XGETBV are enabled
Major features Other features
On-chip Floating Point Unit 36-bit page-size extensions
64-bit / Intel 64 64-bit debug store
NX bit/XD-bit Advanced programmable interrupt controller
Hyper-Threading Technology CPL qualified debug store
Intel Virtualization Debug store
Enhanced SpeedStep Debugging extensions
Digital Thermal Sensor capability
Extended xAPIC support
LAHF/SAHF support in 64-bit mode
Machine check architecture
Machine check exception
Memory-type range registers
Model-specific registers
Page attribute table
Page global extension
Page-size extensions (4MB pages)
Pending break enable
Perfmon and Debug capability
Physical address extensions
Power Limit Notification capability
Process context identifiers
Self-snoop
TSC rate is ensured to be invariant across all states
Thermal monitor
Thermal monitor 2
Thermal monitor and software controlled clock facilities
Time stamp counter
Timestamp counter deadline
Virtual 8086-mode enhancements
xTPR Update Control



[출처] http://www.cpu-world.com/CPUs/Core_i3/Intel-Core%20i3%20Mobile%20I3-2310M.html

인텔 i3-2310M 구입은 젝스컴퍼니 직영 IPC Part Shop

http://www.ipcpart.co.kr/goods/view?no=62

인텔 i3-2310M 호환 산업용 메인보드 정보

http://www.jecs.co.kr/rb/?c=Embedded_Computing_Solutions&p=2&uid=11
